🚀 Overview: The Ultimate Living Room Emulation Box?

If you are considering the Steam Machine as your primary living room retro emulation system, the concise conclusion is that it handles retro emulation exceptionally well. As a mid-range PC form-factor tailored for living room TV setups, it offers something truly compelling: the ability to merge your modern Steam library with multi-generational retro console emulation inside a single seamless, controller-friendly TV interface.

Using frontends like EmuDeck (which is rolling out tailored support for Steam OS desktop and gaming modes), the Steam Machine can output pixel-perfect 2D retro games with heavy 4K CRT shaders, while effortlessly upscaling 3D polygonal titles from 6th and 8th generation consoles to a crisp 4K resolution.

🛠️ Hardware Accessories & Desk Setup

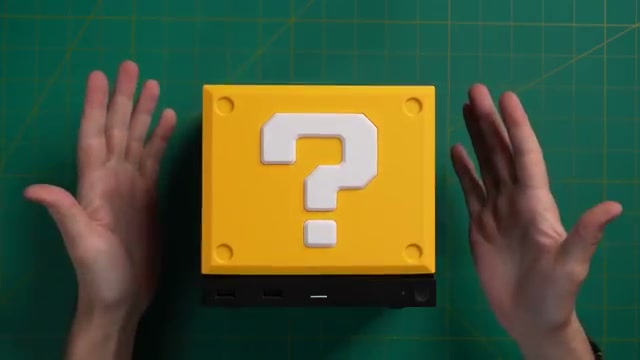

Image: Steam Machine living room setup with custom Mystery Block faceplate, dbrand retro skins, and Mechanism Steam Controller dock (Source: Retro Game Corps / YouTube)

Setting up a dedicated emulation machine in an entertainment center involves both hardware customization and thermal management:

• Custom Faceplates & Skins: Accessories like the Mystery Block custom faceplate, dbrand retro controller/console skins, and Mechanism docks allow the Steam Machine to blend seamlessly into a living room media console.


• Operating Thermals: Under maximum load during emulation testing, both the CPU and GPU typically operate within a stable 75°C – 76°C thermal ceiling.


• Enclosed Entertainment Center Testing: Even when housed inside an enclosed living room entertainment cabinet, temperatures remained well under the 90°C thermal throttle threshold.

📊 Performance Breakdown by Console Generation

🕹️ Deep-Dive Analysis by Emulator Category

1. 📺 2D & Early 3D Systems (8-bit up to N64, Dreamcast, PSP)

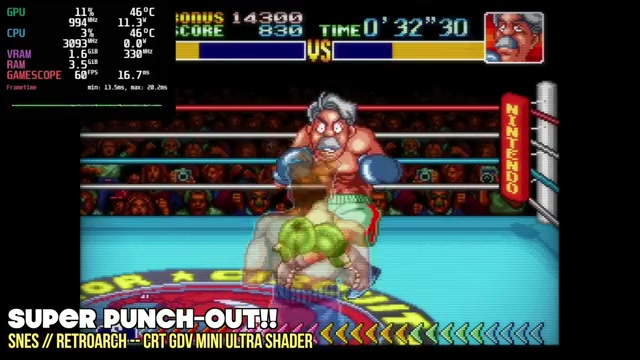

Image: 2D sprite and early 3D emulation running with 4K CRT Megatron shaders on Steam Machine (Source: Retro Game Corps / YouTube)

For 2D sprite-based systems (NES, SNES, Sega Genesis, Arcade) and early 3D systems (PlayStation 1, Saturn, N64, Dreamcast, PSP):

• 4K CRT Shader Overhead: Heavy compute CRT shaders (e.g. CyberLab or Megatron 4K HDR CRT) run effortlessly without dropping a single frame.


• 3D Polygon Upscaling: Emulators like Flycast (Dreamcast) and PPSSPP (PSP) upscale polygon rendering directly to 4K resolution (6x native), rendering crisp vectors on large 4K TV displays.

2. 🌀 6th Generation: GameCube, PS2 & Original Xbox

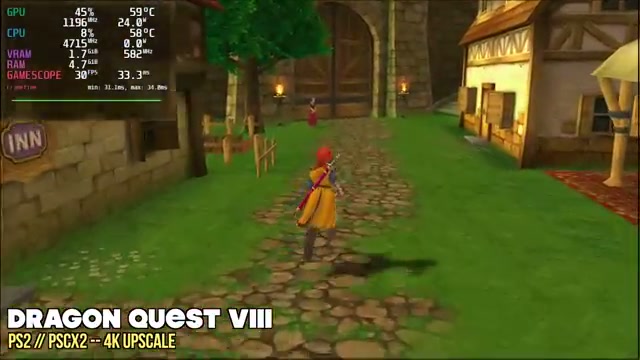

Image: PCSX2 and Dolphin running 6th generation classics upscaled to 4K 60 FPS (Source: Retro Game Corps / YouTube)

The 6th console generation represents a sweet spot for the Steam Machine:

• GameCube & Wii (Dolphin): Runs at 6x native resolution (4K) with custom HD texture packs enabled (such as Super Mario Sunshine HD). Frame rates stay locked at 60 FPS.


• PlayStation 2 (PCSX2): Demanding 3D titles (Shadow of the Colossus, God of War II, Burnout 3: Takedown) maintain a flawless 60 FPS at 4K resolution with widescreen widescreen patches enabled.


• Original Xbox (Xemu): Games like Jet Set Radio Future, Ninja Gaiden Black, and Halo 2 run locked at 60 FPS at 3x-4x resolution scaling. The primary limitation for Xbox is software emulator compatibility rather than raw hardware performance.

3. 💥 7th Generation: Xbox 360 & PlayStation 3

Image: RPCS3 running PlayStation 3 titles (Demon's Souls, Metal Gear Solid 4) on Steam Machine (Source: Retro Game Corps / YouTube)

7th generation emulation introduces unique emulator characteristics:

• Xbox 360 (Xenia Canary): Xenia Canary currently limits internal resolution scaling to 1080p. Compatible titles (Crackdown, Red Dead Redemption, Gears of War) run exceptionally well at native 1080p, with minor frame rate dips down to ~28 FPS only during extreme physics explosions.


• PlayStation 3 (RPCS3): RPCS3 allows 4K resolution scaling and custom 60 FPS patch toggles.


• Demon's Souls & Ratchet & Clank: Quest for Booty: Run at 4K 60 FPS with patches enabled.


• Metal Gear Solid 4 (MGS4): Heavy CPU demand requires dropping resolution to 1440p, where it averages 26 – 28 FPS (playable, though slightly sluggish).


• God of War III: Averages 40 – 45 FPS at 1440p, maintaining full-speed execution.

4. 🎮 8th Generation: Wii U & Nintendo Switch

Image: Cemu (Wii U) and Eden/Ryujinx (Switch) running upscaled 4K 60 FPS gameplay (Source: Retro Game Corps / YouTube)

Modern Nintendo console emulation shines on the Steam Machine:

• Wii U (Cemu): Graphics Packs enable seamless 4K upscaling.


• Zelda: Wind Waker HD: Runs at 4K 60 FPS. (Note: Wind Waker HD pushed CPU thermals to 82°C—the highest thermal load recorded during testing, but still safe).


• Zelda: Breath of the Wild: Runs at 4K with a 60 FPS patch (averaging ~55 FPS). Cemu graphics packs also enable quality-of-life mods like weapon durability toggles.


• Nintendo Switch (Eden / Ryujinx): Running at 2x docked resolution upscale yields native 4K delivery. Titles like Super Mario Odyssey, Metroid Dread, and Zelda: Tears of the Kingdom achieve a fluid 60 FPS once shader caches are compiled.

🎯 Summary & Final Verdict

The Steam Machine delivers outstanding living-room emulation performance equivalent to a well-tuned mid-range PC, but packaged in a console form-factor that fits directly into an entertainment center.

With 4K upscaling support across 6th and 8th-generation consoles, rock-solid 1080p/1440p performance on PS3/Xbox 360, and manageable thermals under 82°C, it stands out as a top-tier choice for a living room retro gaming hub.
